又到暴雨潮湿季节了,广西顶博发电机组制造进水该怎么办?

2021-07-31
来源: 原创
106296
当梅雨季节或热带气旋季来被临时,有将屡遭洪峰、暴雨天气等肯定伤害的作用,因柴油密度机生产发无刷电行为柜高防机房普通是在地面下室或1楼加容易被水淹,如果你生产发无刷电行为柜贮存防火疏于或其余的原因水有将从烟管渗入启行为缸体。当柴油密度机生产发无刷电行为柜泡水时,就比如运行业务请尽快停止,并采取有效必要性的控制措施,断线外交流电源及蓄電池接驳线,同样捡查每一个位置的泡水条件。


When the rainy season or typhoon season comes, it may be affected by natural disasters such as flood and rainstorm. Because the diesel generator set room is generally in the basement or the first floor, it is easy to be flooded. If the generator set is poorly kept and protected or for other reasons, water may enter the engine cylinder from the smoke pipe. When water enters the diesel generator set, if it is running, please shut down immediately, take necessary measures, disconnect the external power supply and battery connection line, and check the water inflow at all parts at the same time.

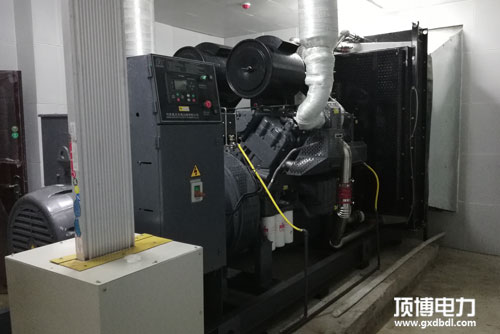

广西顶博发电机组制造机房


检查广西顶博发电机组制造进水常见问题

1、查检排气口聚氨酯保温管(排烟机管最低标准处或消音器)的室外排水结构件是否是冒水排下来。Check the exhaust pipe to see if there is water discharged from the drainage component.


2、检查报告气流柴油滤清器壳子有没有有淹水,空压三滤有没有被水浸渍。Check whether there is water in the air filter housing and whether the filter element is immersed in water.


3、查看发动机马达组机塑料壳底端有没有有雨水。Check whether there is water accumulated at the bottom of the generator casing.


4、诊断水冷冷却器、小风扇、齿轮联轴器等倾动机件可否网络堵塞,网络响应过慢或许卡死。Check radiator, fan, coupling for blockage.


5、异常可否生物碳油、汽柴油或水的渗漏。Whether there is leakage of organic oil, fuel or water from the outside.


6、取下连杆室盖,考察能不有渗水。排查柴油发电机的组机线圈隔绝/被污染环境。Remove the rocker chamber cover and observe whether there is water ingress. Check the insulation and ontamination of the generator windings.


7、测试掌控电缆线和传输电路板的绝缘层。测试掌控盖板版块、各电子仪表、告警系统设计、开机启动电源开关。Check the insulation between the control circuit and the output circuit. Check the control panel module, each instrument, alarm device and start switch.


特别留意:根本是不能让水渗入起思想的点燃室!Note: Never let water enter the combustion chamber of the engine!


漏水治疗方法步骤静音发电厂广西顶博发电机组制造组进水量后的除理法律依据:Treatment  after water enter the generator:


当判别重油并网发交流接触器组启心理的挥发室没能存水,隔热具备规范时,可重启重油并网发交流接触器组。在重启时要提前准备以内问题:When confirm there is no water in the combustion chamber  and the insulation meets the requirements,can start the generator. Pay attention to the following issues when starting:


1、在开始向前走行因此诊断,是指摆放燃料箱结水。电系统逐渐上电,通过观察需不需要有失败。Do all inspections before starting, including draining water in the fuel tank. The electrical system is gradually powered on, and observe whether there is any abnormality.


2、间断性开始打火机的日子不容许低于5秒钟。若打火机没有自燃,则检查报告然油管道阀门及高压电器控制回路,1两分后再者开始。Start the engine continuously shall not exceed 30 seconds. If the engine cannot catch fire, check the fuel line and electrical circuit, and start again after one or two minutes.


3、查验发起机说话声会不会有异常处理,会不会有腥臭味。查验不间断智能仪表的展示、液晶电视机展示屏会不会断屏一些展示不清。


Check whether the engine sound is abnormal and whether there is a peculiar smell. Check whether the display of the electrical instrument and the LCD screen are broken or unclear.


4、密切合作洞察分析齿轮油经济压力和水工作温度因素,若是汽压或工作温度因素不适用要求合技术设备标准规范,应倒闭起动因。停用后,审核单次齿轮油表面。Closely observe the oil pressure and water temperature. If the oil pressure or temperature does not meet the technical specifications, the engine should be shut down. After stopping, check the oil level.


当决定汽车发驱力能够浸水、生产发交流接触器隔热一致合标准要求时,绝不能擅自改变维修费,应寻找生产发交流接触器组工厂的专业课程科技考生的促进。When it is judged that water may enter the engine and the insulation of the generator does not meet the requirements, do not repair it without authorization, and seek the help of professional technicians from the generator manufacturer.


雷暴/太潮环保,静音火力发三相异步电工作机组安全使用注重关键点Key points for unit operation in rainstorm / humid environment


1、防止氛围需要1. Placement environment requirements(1)在户外安装运行的超临界锅炉,需准备好防水方式,运行环境防水棚、靜音箱等;


Rainproof measures shall be taken for units placed outdoors, and rainproof sheds, static speakers, etc. shall be equipped;


(2)冷水机组表壳须有稳定的保护性地线,对需求有普通点直观地线的火力发无刷电机,则必须要由靠谱技术人员实现普通地线;The shell of the unit must be reliably grounded. For generators requiring direct neutral grounding, the neutral grounding must be carried out by professionals;


(3)打雷闪电频发区县在使用设备,请系统配置防雷装备。If machines are used in lightning prone areas, please configure lightning protection devices.


(4)请就不要将制冷机组置于于地形地貌较低,路基不牢(土壤地坪)更容易积水情况的方面;Please do not place the unit in a place with low terrain, weak foundation (soil ground) and easy to accumulate water;


(5)置放在半地下隧道室室采用的机器设备,需作好半地下隧道室室室外排水、防潮湿运转。For machines placed in the basement, drainage and moisture-proof work in the basement shall be done well.
